Description

The Flomarvel FH-B Series stainless steel electric ball valve is designed for applications requiring high torque and reliable valve control.Featuring a standardized ISO 5211 mounting interface between the actuator and valve body, it allows secure installation, easy maintenance, and excellent interchangeability. With a powerful 15N·m torque output, the actuator provides stable operation for medium-size pipelines from DN8 is suitable for a wide range of automation, HVAC, water control and industrial applications.

As a manufacturer, to ensure reliability in demanding applications, our valves has enhanced sealing performance, precise full open / full close positioning, durable metal gear transmission, and 100% functional test before shipment (30-minute operation test).

With extensive experience in OEM and ODM projects, we have the expertise to customize our products to meet your specific needs and requirements.

Specifications

Working Voltage: DC5V/ADC9-24V/AC110V-230V Operating Time: <15secs Working Current: <500mA Max Power: 22W Working Pressure: 0-1.6MPa Mounting Standard：ISO5211 Valve Material:  Stainless Steel Manual Override: Optional NPT BSP Thread for option Sear Material: PTFE Coil Connection: 35cm(13”) by default and it’s customizable Enclosure: IP67 Average temperature: 0°C to 100°C Ambient temperature: -20°C to 45°C Fast Switching zero leakage metal gear (80,000+ cycles) 100% test

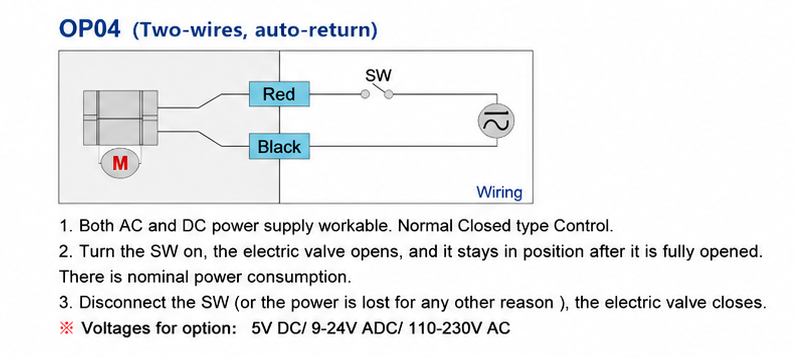

Wiring Control OP04, with feedback is for option.

Applications

Water purification system

Water treatment system

Water saving system

Medical equipment

Building Automation

Smart agriculture automatic irrigation system,

Smart home system

Small equipment for automatic control

Recreational vehicle (RV), sprinkler truck, HVAC system



FAQ

• What are the differences between OP01F wiring and OP05 wiring?

         For OP01F wiring, the actuator will cut off automatically and the valve stops moving after the valve is fully open/closed. For OP05 wiring, the external control is needed to stop the valve moving after the valve is fully open/closed.

• What is the IP (Ingress Protection) rating of this valve?

         IP67. For permanent outdoor installation, they should be installed under a cover or within a protective enclosure to avoid prolonged exposure to rain.

• Is this valve certified for potable water?

         Yes. Flomarvel stainless steel ball valves are certified to NSF 61 and are approved for safe use with potable (drinking) water.
