Description

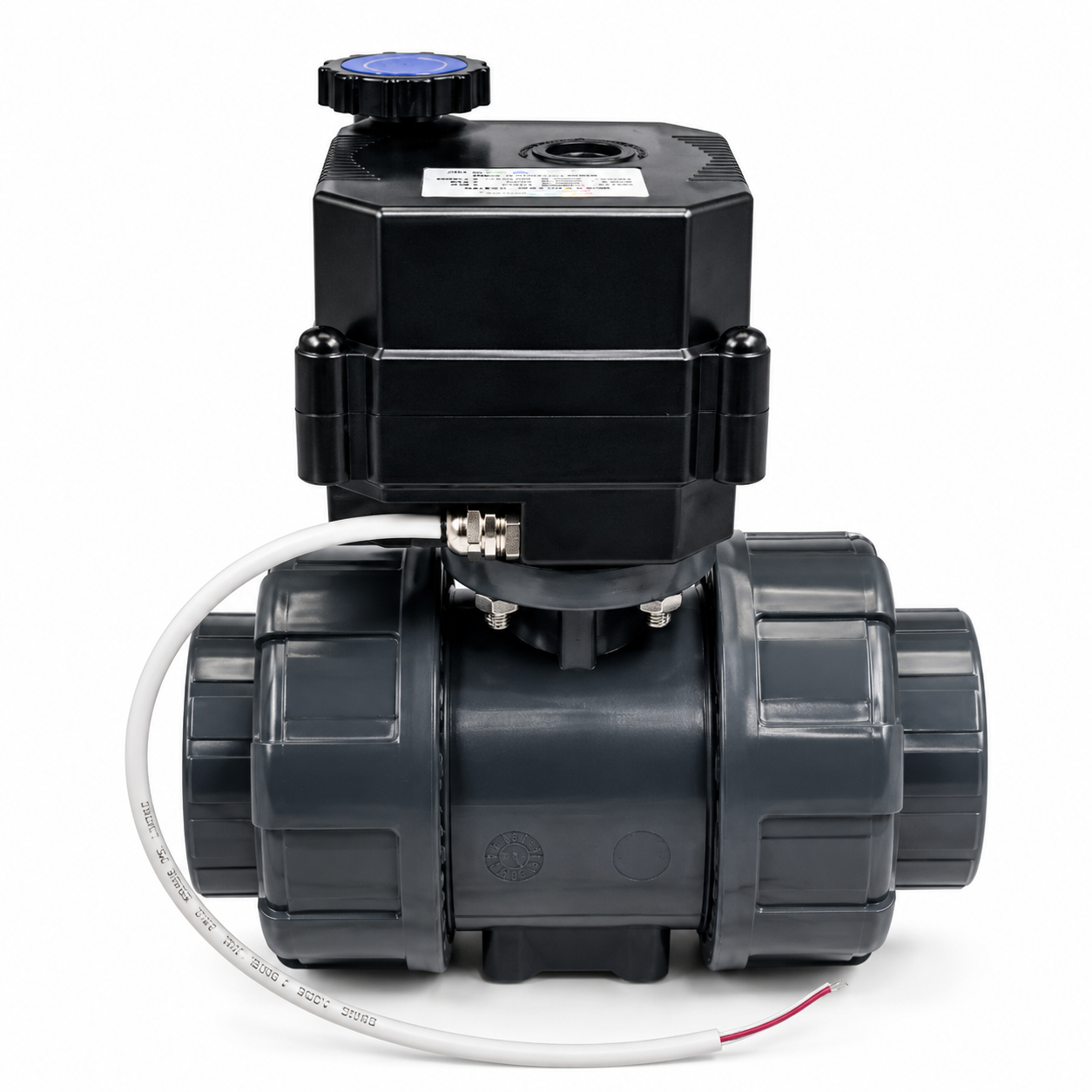

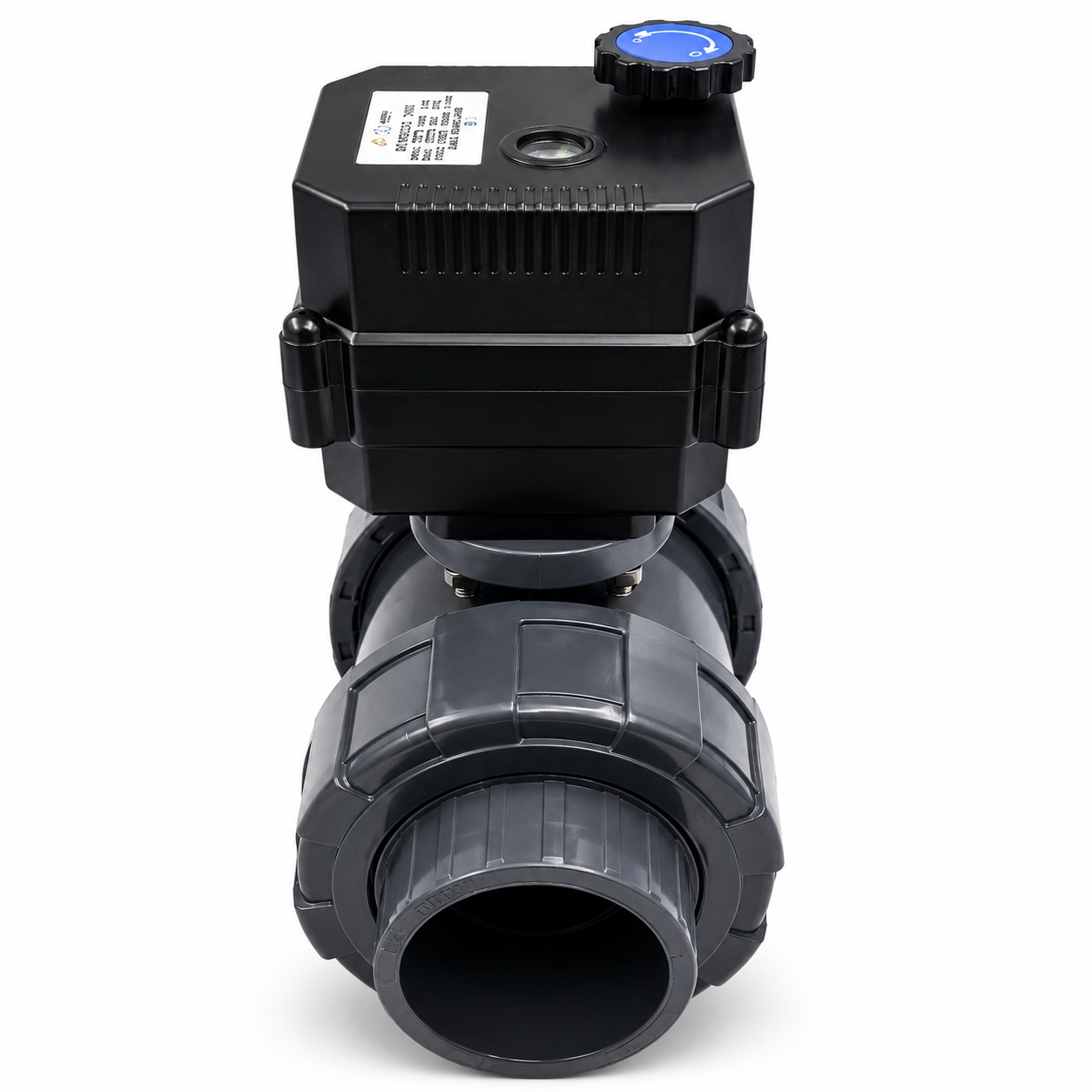

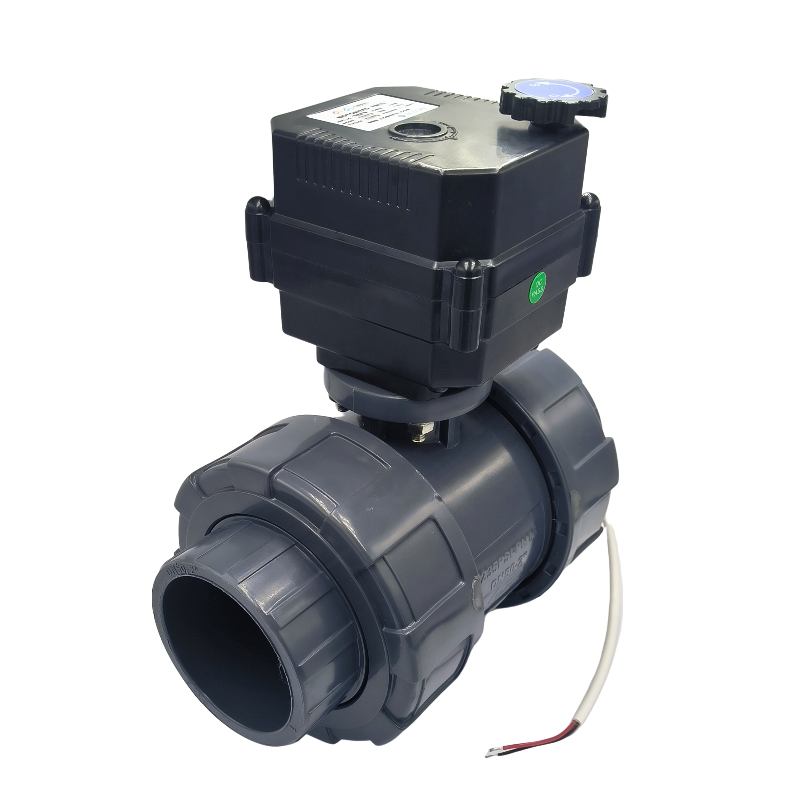

The Flomarvel FH-B Series UPVC electric ball valve is designed for applications requiring high torque and reliable valve control.Featuring a standardized ISO 5211 mounting interface between the actuator and valve body, it allows secure installation, easy maintenance, and excellent interchangeability. With a powerful 15N·m torque output, the actuator provides stable operation for medium-size pipelines from DN8 is suitable for a wide range of automation, HVAC, water control and industrial applications.
As a manufacturer, to ensure reliability in demanding applications, our valves has enhanced sealing performance, precise full open / full close positioning, durable metal gear transmission, and 100% functional test before shipment (30-minute operation test).
With extensive experience in OEM and ODM projects, we have the expertise to customize our products to meet your specific needs and requirements.
Specifications
Working Voltage: DC5V/ADC9-24V/AC110V-230V
Operating Time: <15secs
Working Current: <500mA
Max Power: 22W
Working Pressure: 0-1.6MPa
Mounting Standard：ISO5211
Valve Material: Brass,Stainless Steel,UPVC
Manual Override: Optional
NPT BSP Thread for option
Sear Material: PTFE
Coil Connection: 35cm(13”) by default and it’s customizable
Enclosure: IP67
Average temperature: 0°C to 100°C
Ambient temperature: -20°C to 45°C
Fast Switching zero leakage metal gear (80,000+ cycles) 100% test
Applications
Water purification system
Water treatment system
Water saving system
Medical equipment
Building Automation
Smart agriculture automatic irrigation system,
Smart home system
Small equipment for automatic control
Recreational vehicle (RV), sprinkler truck, HVAC system
Optional Wiring Control(Optional signal feedback is available for OP01-OP04)
FAQ
- What are the differences between OP01F wiring and OP05 wiring?
For OP01F wiring, the actuator will cut off automatically and the valve stops moving after the valve is fully open/closed. For OP05 wiring, the external control is needed to stop the valve moving after the valve is fully open/closed.
- What is the IP (Ingress Protection) rating of this valve?
IP67. For permanent outdoor installation, they should be installed under a cover or within a protective enclosure to avoid prolonged exposure to rain.
- Is this valve certified for potable water?
Yes. Flomarvel stainless steel ball valves are certified to NSF 61 and are approved for safe use with potable (drinking) water.
- Is OEM/ODM service available?
- How many days is the lead time?
- What is the MOQ？
- What is your warranty policy?
