Description



Flomarvel WiFi Electric Ball Valve & WiFi Flowmeter provide intelligent remote control for water systems through a WiFi network and mobile app. With features such as real-time monitoring, automatic scheduling, leak protection integration, and manual override, they are widely used in smart homes, irrigation, water treatment, HVAC, and industrial automation. Available in brass, stainless steel, and PVC, with multiple voltage and connection options to meet different application requirements.

• App Remote Control
• Automatic Scheduling
• Remote Monitoring of Water Consumption & Automatically Valve Shut off
• Easy Installation
• Smart Home & Industrial Automation

WiFI Electric Ball Valve Specifications

Working Voltage: DC5V

Operating Time: <5secs

Working Current: <100mA

Max Power: 5W

Working Pressure: 0-1.0MPa

Valve Material: Brass, Stainless Steel, UPVC

General Size: 1/2 3/4 1 inch with Bsp or Npt thread connection

Manual Override: Optional

NPT BSP Thread for option

Sear Material: PTFE

Coil Connection: 2m length cable with USB connector by default

Enclosure: IP65

Average temperature: 0°C to 100°C

Ambient temperature: -15°C to 45°C

Fast Switching zero leakage metal gear (80,000+ cycles) 100% test

WiFI Flowmeter Specifications

General Size: 1/2 3/4 1 inch with Bsp or Npt thread connection Please check with us for each size’s Flowmeter’s data sheet for more technical details.

Applications

Water saving system

Medical equipment

Building Automation

Smart home system

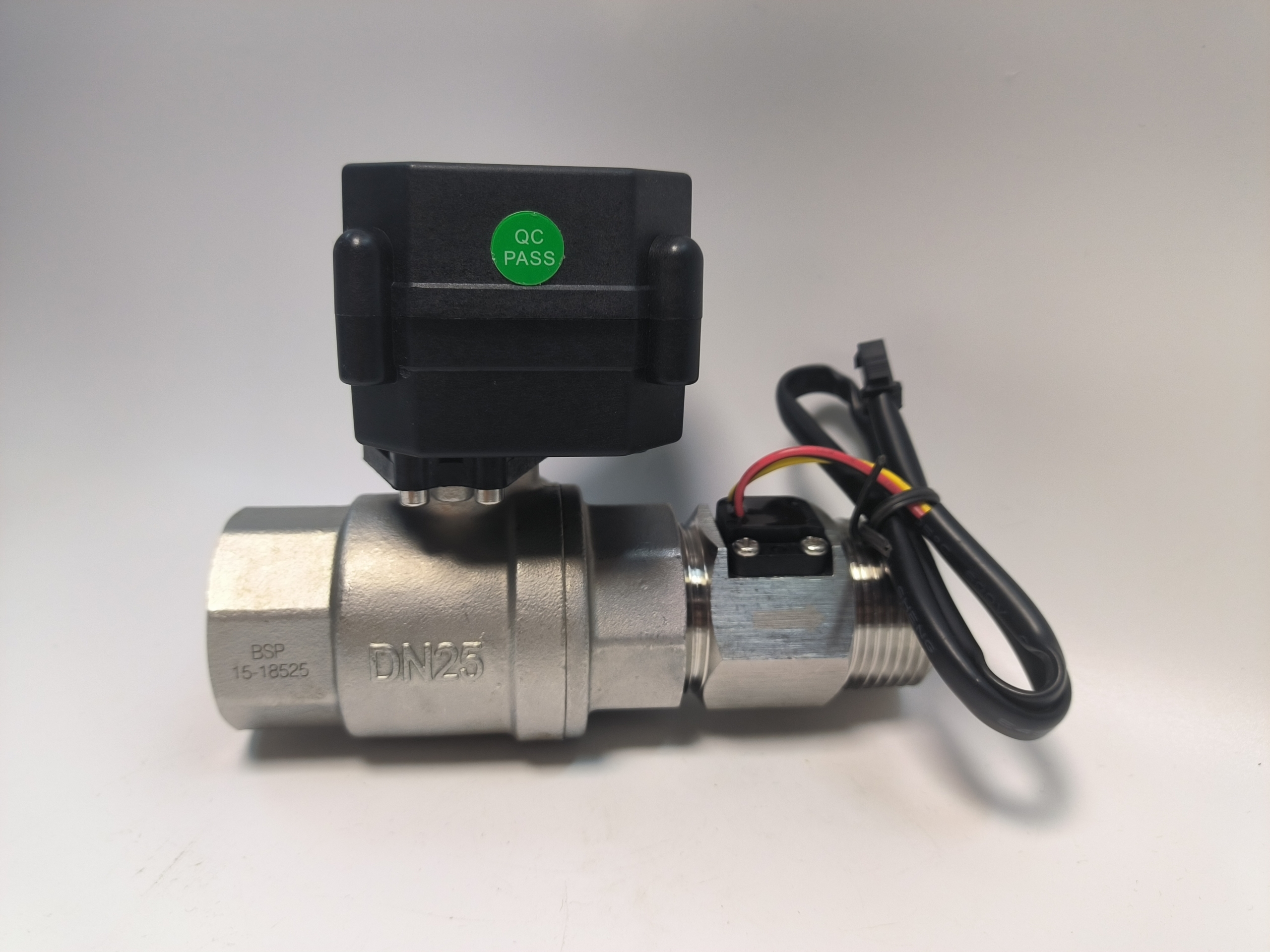

A WiFi motorized ball valve integrated with a WiFi flow meter for smart water control applications.

The system allows users to remotely monitor water flow and control the electric ball valve through a mobile app, set customized trigger conditions, and automatically close the valve when the preset conditions are met.  It is designed for applications requiring convenient water management, flow monitoring, and automated valve operation.

Key Features:

WiFi motorized ball valve and smart water flow meter integration

Real-time water flow monitoring with WiFi flow meter

Water consumption tracking via mobile app Customizable flow trigger conditions and value

Automatic valve shut-off based on preset conditions

Smart water management solution for residential and commercial applications from remote valve control via smartphone

Compact electric valve design with easy system integration

Automatic Water Shut-Off | Water Consumption Monitoring | Residential Water Control | Smart Plumbing Systems Flomarvel specializes in motorized ball valves and smart water control solutions for OEM/ODM projects.

FAQ

• What is the IP (Ingress Protection) rating of this valve?

         IP65. For permanent outdoor installation, they should be installed under a cover or within a protective enclosure to avoid prolonged exposure to rain.

• Is this valve certified for potable water?

         Yes. Flomarvel stainless steel ball valves are certified to NSF 61 and are approved for safe use with potable (drinking) water.
