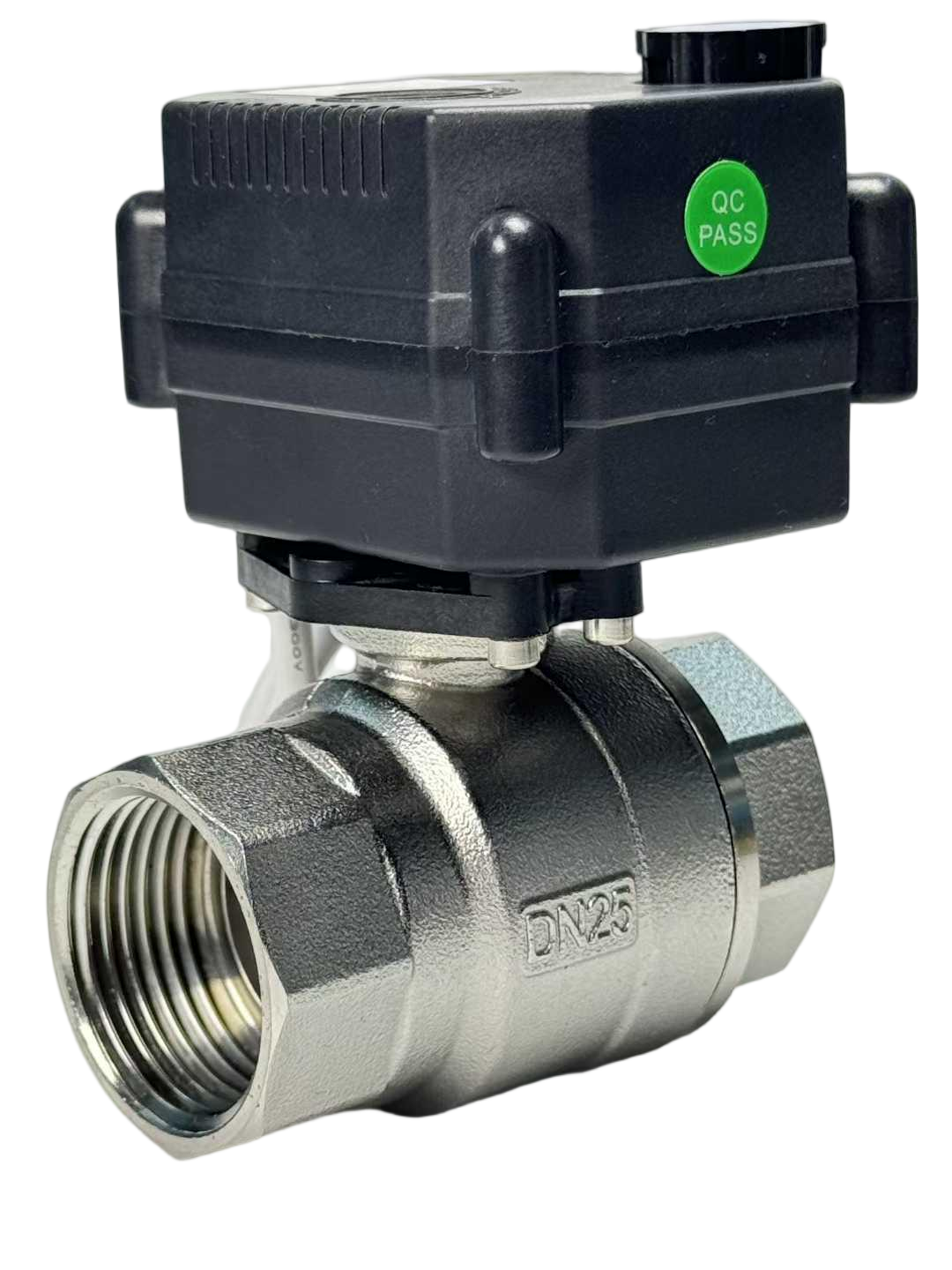

The Flomarvel FH-RS Series RS485 Motorized Ball Valve is designed for precise flow control and integration with industrial automation systems. Featuring RS485 wired communication and Modbus protocol, the valve supports 0–100% position control, making it suitable for water treatment, HVAC, irrigation, automation equipment, and remote fluid control systems.

Powered by DC 12–24V and equipped with precision metal gears, the compact actuator provides reliable operation, accurate positioning, and easy system integration.

Valve Material: Stainless Steel, Brass, UPVC

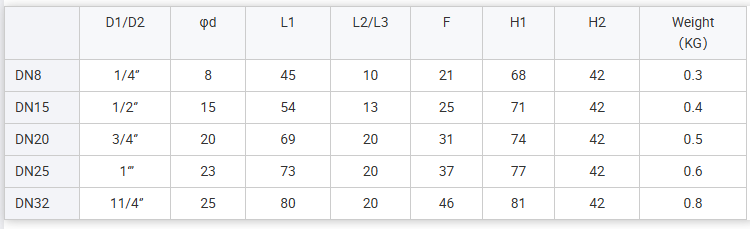

Valve Size: SS DN8 DN10 DN15 DN20 DN25 DN32

                  Brass DN8 DN15 DN20 DN25 DN32

                  UPVC DN15 DN20 DN25

Series: FH-RS485

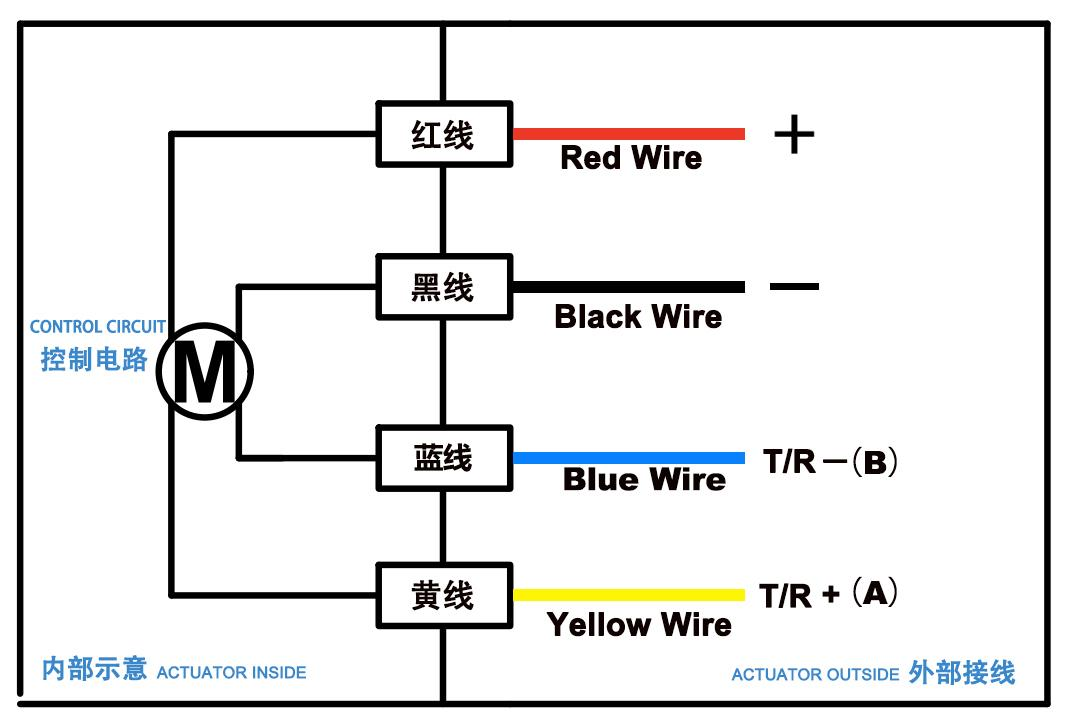

Communication RS485

Protocol Modbus

Baud Rate 9600 / 57600 bps

Control Range0–100%

Accuracy Tolerance ＜2%

Torque: 2.5NM

Operating Time: ＜5s

Working Voltage: 12-24v DC

Working Current: ＜100mA

Max. Power: 5W

Max.  Pressure: 1.0Mpa

Medium Temperature: 0-100℃/32-212℉

Ambient Temperature: -20-45℃/-4-113℉

Enclosure: IP67

Service Life: ＜80k Cycles

• What are the differences between N.C. (Normally Closed) and N.O. (Normally Open) valves?

         Normaly Closed vaves remain closed when power off and open only when power on.

         Normaly Open valves allow flow by default and close when power on.

• What is the IP (Ingress Protection) rating of this valve?

         IP67. For permanent outdoor installation, they should be installed under a cover or within a protective enclosure to avoid prolonged exposure to rain.

• Is this valve certified for potable water?

         Yes. Flomarvel stainless steel ball valves are certified to NSF 61 and are approved for safe use with potable (drinking) water.
