In modern automation systems, controlling water or fluid flow efficiently is essential. One compact and increasingly popular solution is the mini electric ball valve — a small, motor-driven valve designed for on/off control and modulating control in a wide range of applications. Mini means it has a compact actuator, and the valve size is usually from 1/4 inch — 1 1/4 inch. And compared to industrial valve for heavy duty or bigger pipe, it is small and light weighted.
What Is a Mini Electric Ball Valve?
A mini electric ball valve is a compact valve that uses an electric actuator to control the opening and closing of a ball valve. Inside the valve, a rotating ball with a hole (bore) allows or blocks fluid flow depending on its position. When powered, the actuator rotates the ball 90 degrees:
• Open position → fluid flows freely
• Closed position → flow is completely blocked
Unlike manual valves, this process is automated, making it ideal for systems that require remote or programmable control.
Key Components
A typical mini electric ball valve consists of three main parts:
1. Electric Actuator
● Contains a small motor and gear system
● Converts electrical energy into mechanical rotation
● Controls opening/closing automatically
2. Ball Valve Body

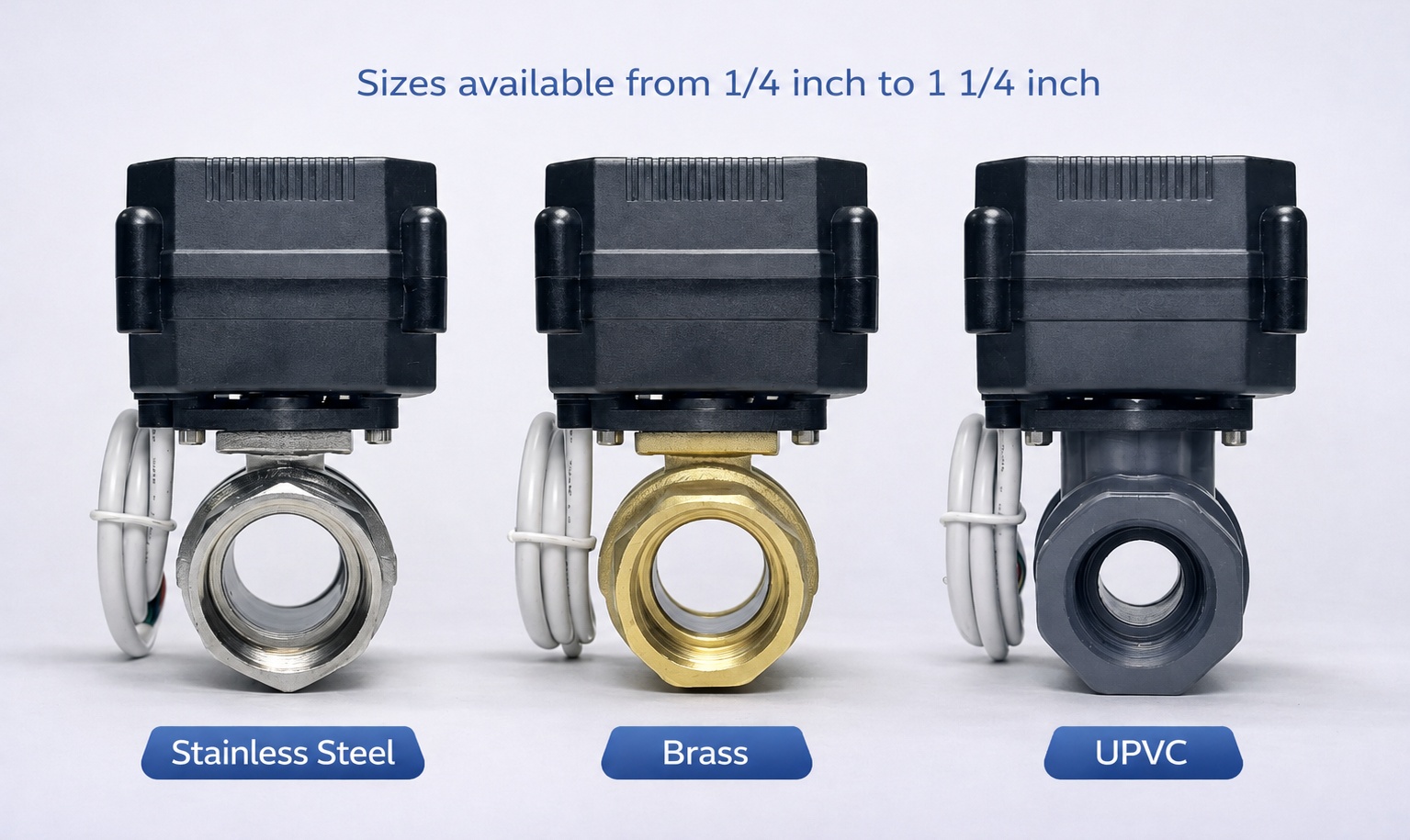

● Usually made of brass, stainless steel, or PVC
● Houses the rotating ball and sealing components
3. Sealing system
● PTFE (Teflon) seats
● Silicone rubber, EPDM, FKM O- ring etc. for option.
How Does It Work?
The operation is simple and reliable:
1. Power is applied to the actuator
2. The motor drives a gear system
3. The output shaft rotates the ball by engaging with the shaft of the valve
4. Internal limit switches stop the motor at fully open or closed positions

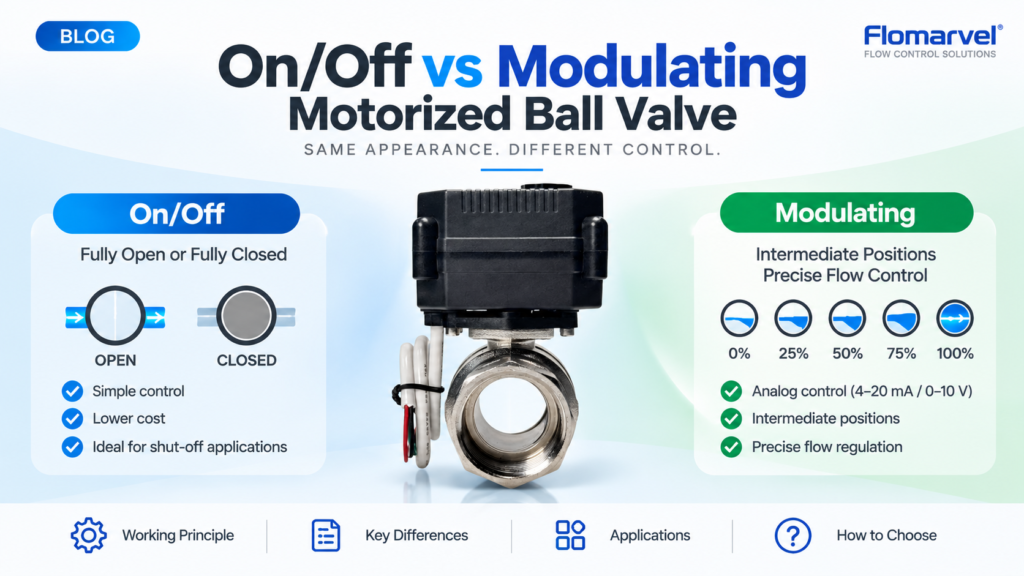

There are several wiring controls for option — 2 wire (reverse polarity, auto return), 3 wire (one point control, 2 point control), 5/6 wires with valve position feedback to the control system / platform etc.
4–20mA, 2–10V modulating, Wifi,/Zigbee (through mobile APP), Modbus, Lorawan, Lora control/communication are also available.
Key Features
Mini electric ball valves are widely used because of their advantages:
● Compact size — ideal for tight installation spaces
● Low power consumption — suitable for battery or solar systems
● Fast operation — typically opens/closes in 3–5 seconds
● Long lifespan — up to 100,000 cycles in high-quality designs
● Good sealing performance — minimal leakage
Common Voltage Options
These valves are available in multiple voltage configurations:
● DC 5V / 12V / 24V → popular in IoT and smart systems
● AC 110V / 220V → used in industrial or building systems
Among these, 12V and 24V DC are the most commonly used globally.
Typical Applications
Mini electric ball valves are used across many industries:
● Irrigation Systems
Used in automatic watering systems for agriculture, gardens, and landscaping.
● HVAC Systems
Control water flow in heating and cooling systems.
● Water Treatment
Manage flow in filtration, purification, and distribution systems.
● Smart Home Systems
Integrated with apps and platforms for remote water control and leak prevention.
Why Choose a Mini Electric Ball Valve?
Mini electric ball valves are ideal when you need:
● Remote or automatic control
● Low energy consumption
● Reliable long-term operation
● Compatibility with smart systems
They are especially useful in modern IoT-based water control solutions, where automation and efficiency are critical.
Final Thoughts
As automation continues to expand across industries, the demand for compact, reliable flow control devices is growing. The mini electric ball valve stands out as a versatile solution that combines precision, efficiency, and durability.
Whether used in irrigation, industrial equipment, or smart home systems, it plays a key role in making fluid control smarter and more efficient.
If you’re selecting a valve for your system, understanding how mini electric ball valves work is the first step toward choosing the right solution.
